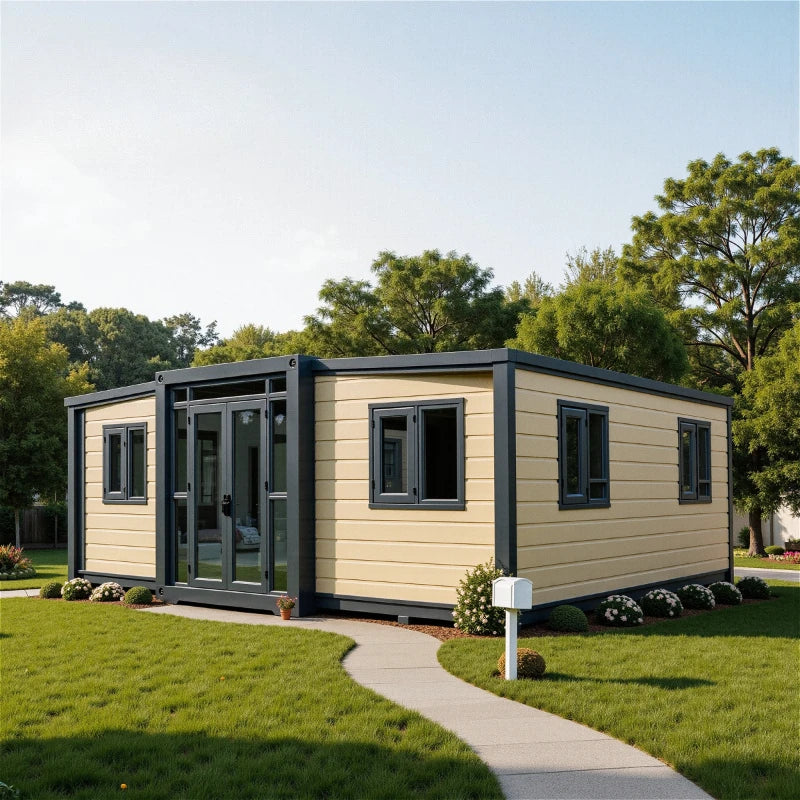

Expandable Prefab Container Home — Foldable Modular Steel House

Live Anywhere. Deploy in Hours.

This Expandable Container Home is a fully prefabricated, foldable modular structure engineered for modern living, commercial use, and off-grid deployment. Built on a galvanized steel frame with EPS sandwich panel construction, it ships flat and expands on-site in under a day — no heavy machinery required.

Key Features

Rapid Deployment: Factory-built and pre-assembled — reduces on-site construction time by over 50%
Fully Customizable: Doors, windows, walls, roof, interior finishes, colors, and materials tailored to your specs
All-Weather Construction: 75mm fireproof EPS sandwich panels; waterproof, moisture-resistant, and thermally insulated
Structural Integrity: Galvanized steel frame withstands wind, seismic activity, and harsh climates — 50+ year lifespan
Modular & Scalable: Stack vertically or connect horizontally to create multi-room residences, offices, or commercial complexes
Energy Efficient: Double-layer tempered glass + broken bridge aluminum windows for superior thermal and acoustic insulation
Compliant Electrical & Plumbing: Pre-installed systems meet local certifications (CE, SAA)

Available Sizes

Size	External Dimensions (mm)	Indoor Area	Weight
700mm	5900 × 4800 × 2480	28.37 m²	1.6 ton
10 ft	2950 × 6300 × 2480	18.58 m²	1.95 ton
20 ft	5900 × 6300 × 2480	37 m²	3.8 ton
30 ft	9000 × 6300 × 2480	56.7 m²	4.9 ton
40 ft	11800 × 6300 × 2480	72.4 m²	5.8 ton

Materials & Construction

Frame: Hot-dip galvanized steel, fully welded, powder-coated
Roof & Walls: 75mm fireproof EPS insulation sandwich panel
Interior Partition: 50mm EPS sandwich panel
Floor: 2mm PVC leather + 18mm glass magnesium board + 20mm calcium silicate underlayer
Ceiling: Bamboo and wood fiber integrated wall panels
Doors: Thermal break aluminum double doors / wood or metal bedroom doors
Windows: Double-layer tempered glass with broken bridge aluminum casement frames
Sealant: Polyurethane adhesive — superior waterproofing, no leakage

Ideal For

Tiny homes · Forest cabins · Garden rooms · Sunrooms · Offices · Dormitories · Retail kiosks · Guard houses · Warehouses · Emergency or disaster housing · Hotels · Glamping sites

Shipping & Logistics

Shipped in folded state via standard 20'/40' container. Logistics and installation support available. Custom configurations quoted upon request — contact us with your size, layout, and finish preferences.
